Changing the size/colour of Map Pins

It is possible within the Report to change the colour and size of the Map Pins with custom criteria which is applied through a calculated column, like other CSS Styling.

Colour coding Map Pins is made of two parts:

• -wb-map-pin-color – this defines the colour of the pin.
• -wb-map-pin-scale – this defines the size of the pin.

The colours are defined through Hexadecimal values, a few examples include:

• Red: #c12e28
• Yellow: #edc20b
• Blue: #3f7ec1
• Green: #38a582
• Black: #1a1e25
• White: #ffffff

The Scale of the Pin can be set anywhere between 0.5 and 3

For example, to define a pin to be blue and standard sized, you use:

“-wb-map-pin-color:#3f7ec1; -wb-map-pin-scale:1”

For a pin to be green and extra large, you use:

“-wb-map-pin-color:#38a582; -wb-map-pin-scale:3”

The easiest way to set up the colour coding that depends on something like an Organisations type (Head Office or Subsidiary) or a Person’s Job Role, will be through a CASE statement such as below:

CASE
WHEN person_job_role = 'Director' THEN '-wb-map-pin-color:#38a582; -wb-map-pin-scale:1.2;'
WHEN person_job_role = 'Manager' THEN '-wb-map-pin-color:#c12e28;-wb-map-pin-scale:1;'
ELSE '-wb-map-pin-color:#3f7ec1;-wb-map-pin-scale:0.8;'
END

The above translates to;

• When the Person’s job title is Director then the Map Pin will be Green and Large
• When the Person’s job title is Manager then the Map Pin will be Red and Regular sized.
• Otherwise the pin will be blue and small.

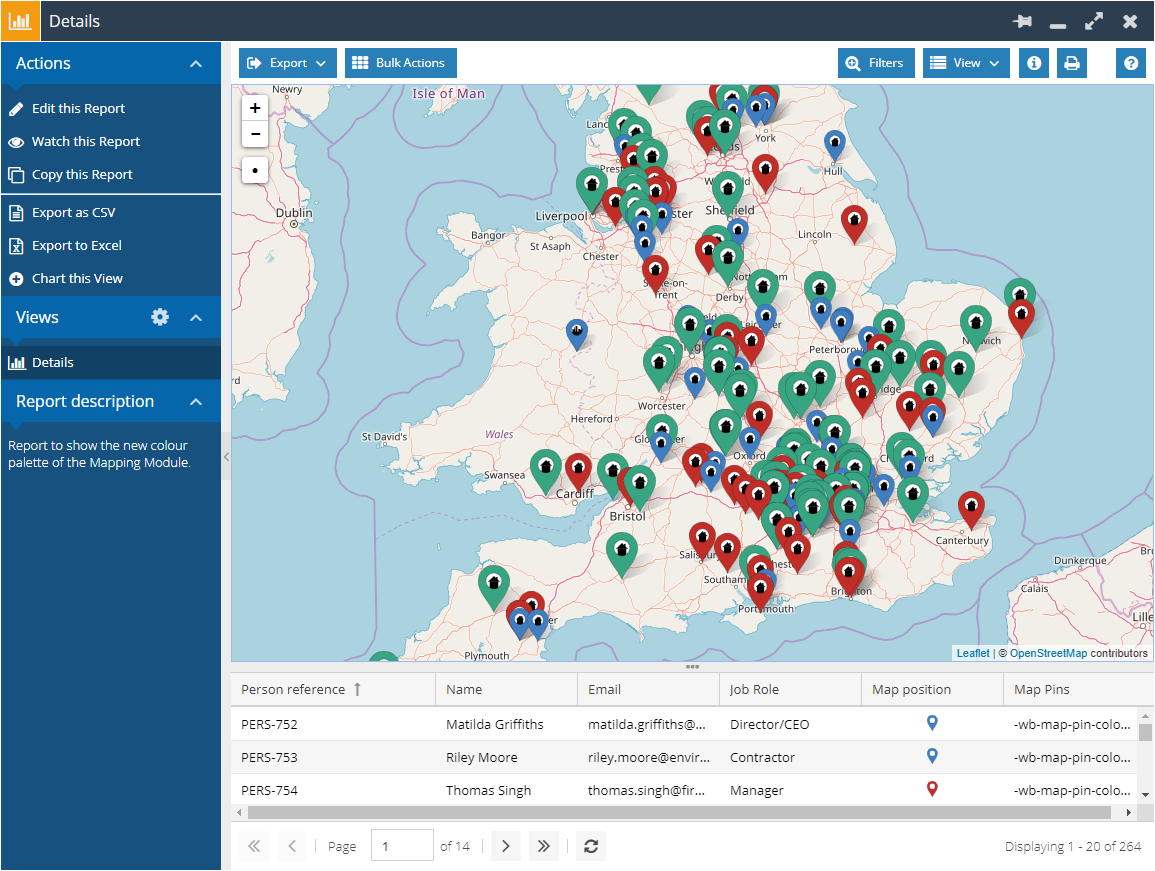

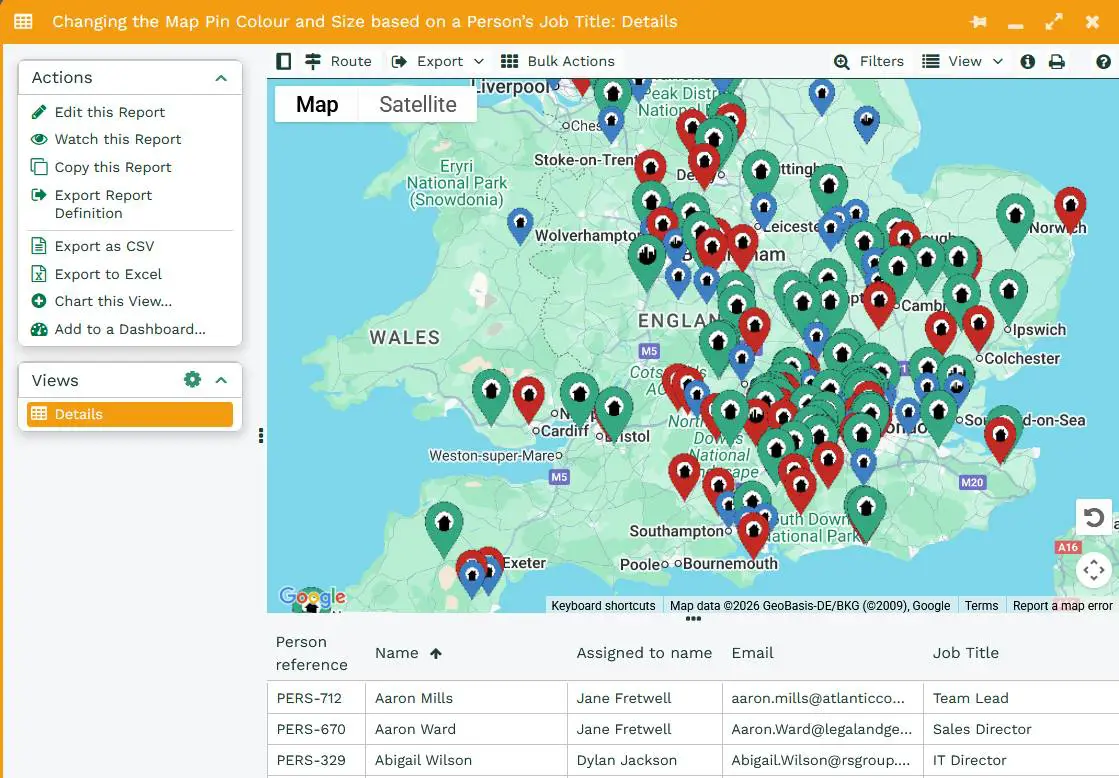

To then apply this formatting, open your Map Position report column, open the Style tab, and change the Cell conditional style to ‘Calculated conditional styling’, then select your calculated column.

You can find a worked example of changing the colour and size of the Map Pin based on a Person’s Job Title in our Forum.
